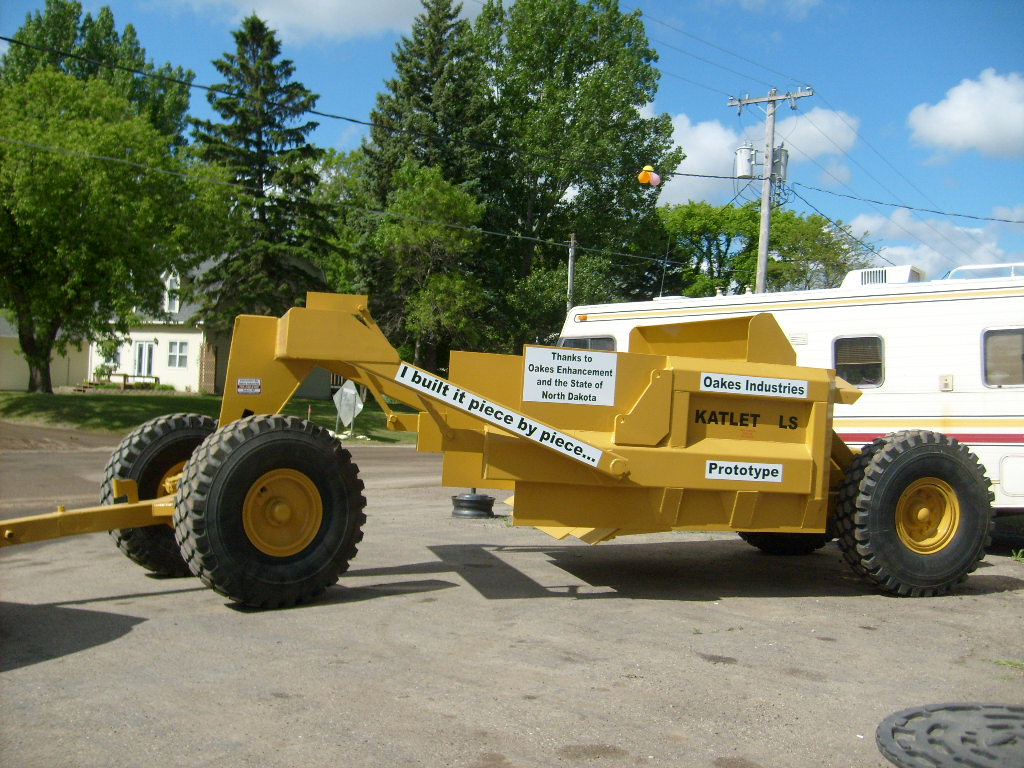

PROTOTYPE SCRAPER

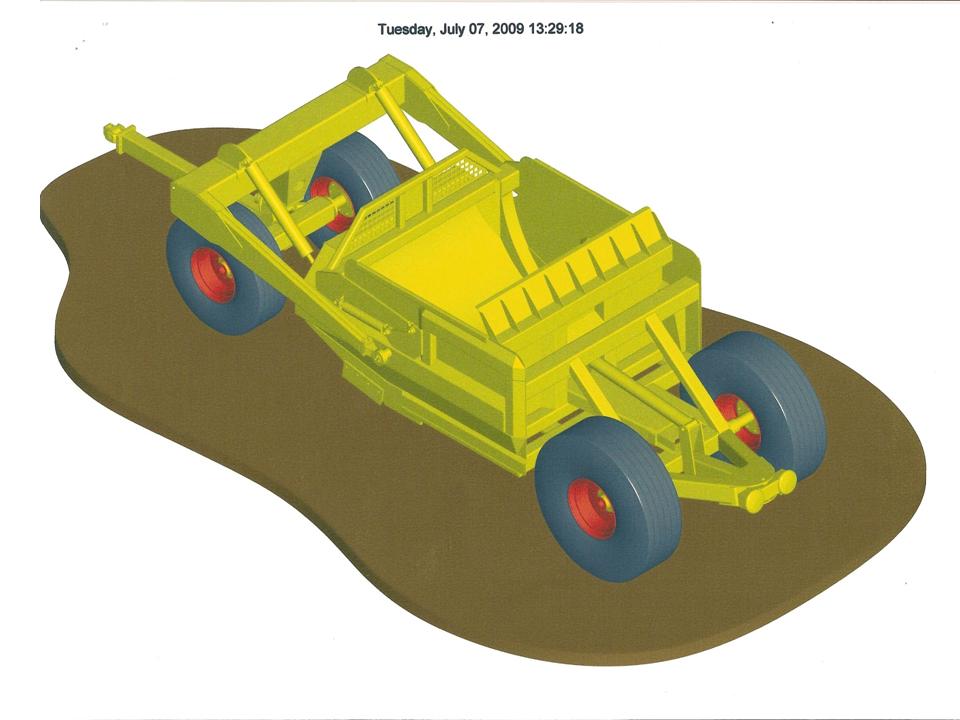

I am designing a new pull scraper.  The sizes will vary from an 8 to a 30 yard scraper.

The scraper is going to be designed as a bullet proof type scraper.  It will be able to withstand a 100 to 500 horsepower tractor.

The scraper will be 2 to 3 times as heavy as the competition.

The scraper will have a 20” plus clearance and will have approximately 20” depth cut.

The tires are huge – 16:00 x 20 tire on the 8-11 yard scraper and 18:00 x 25 tire on the 12-15 yard scraper.

The 12-15 yard scraper will be designed so that it can be dumped into with a payloader.

Click on any picture below for a larger view:
